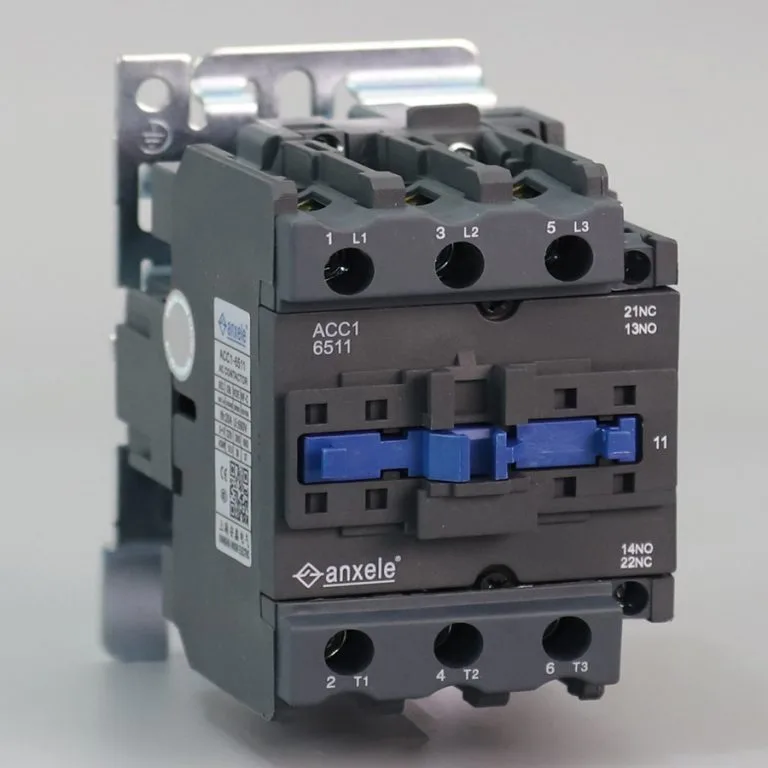

AC contactor ACC1-6511 for long distance breaking circuit

ACC1 series AC contactor (hereinafter to be referred as contactor), it mainly applies to the circuit of AC 50Hz/60Hz, and rated insulation voltage 660V. When used in AC-3, and rated operational voltage is 380V, rated current up to 620A, for long distance breaking circuit and frequently starting or control the motor.

Model NO.:

ACC1-6511

Production Capacity:

300, 000 PCS/Monthly

Transport Package:

Standard Export Carton 120PCS

Payment Terms:

L/C, T/T, Paypal

Certification:

ISO9001-2000, CE, CB, RoHS

Origin:

Zhejiang

Inquiry

Write a Review

Product Introduction

Combined with proper thermal overload relay can protect load circuit. Contactor can frequently start and control AC electromotor.This product conforms to GB14048.4 =IEC60947-4-1 standard.

Technical Data

Electrical Features

Mechanical Features

Installation

AC contactor ACC1-6511 for long distance breaking circuit 3

● Type (wave form of the earth leakage sensed): AC,A.
● Thermo-magnetic release characteristic: B,C.
● Rated current In: 6, 10, 16, 20, 25, 32, 40A.
● Poles: 1P+N.
● Rated voltage Ue: 230/240V.
● Rated sensitivity I△n: 0.01, 0.03, 0.1, 0.3A.
● Rated residual making and breaking capacity I△m:500A.

AC contactor ACC1-6511 for long distance breaking circuit 4

● Rated short-circuit capacity lcn: 4,500/6,000A.
● Break time under I△n: ≤0.1s.
● Rated frequency: 50/60Hz.
● Rated impulse withstand voltage (1.2/50)Uimp: 4,000A.
● Dielectric TEST voltage at ind. Freq. for 1min: 2kV.
● Insulation voltage UI: 300V.
● Pollution degree: 2.

● Electrical life: 2,000.

● Mechanical life: 2,000.

● Contact position indicator: Yes.

● Protection degree: IP20.

● Ambient temperature (with daily average≤35℃): -5℃…+40℃.

● Storage temperation: -25℃…+70℃.

● Terminal connection type: Cable/Pin-type busbar.

● Terminal size top/bottom for cable: 16mm2 18-5AWG.

● Terminal size top/bottom for busbar: 16mm2 18-5AWG.

● Tightening torque 2.0 N*m 11In-Ibs.

● Mounting: On DIN rail EN 60715 (35mm) by means of

● Fast clip device.

● Connection: From top.

NL1-C40
SPD to EN 61643-II	Type 2				Operating temperature range TU	-40℃…+80℃
SPD to IEC 61643-I	Class II				Cross-sectional area (min.)	1.5 mm2 solid / flexible
SPD to VDE 0675-6	Class C				Cross-sectional area (max.)	35 mm2 stranded / 25 mm2 flexible
Max. continuous voltage Uc	275 V	320 V	385 V	440 V	Mounting on	35 mm DIN rail acc. To EN 60715
Nominal discharge current (8/20μs) In	20 kA				Degree of protection	IP 20
Max. discharge current (8/20μs) Imax	40 kA				Housing material	Thermoplastic; extinguishing degree UL 94 V-0
Voltage protection level Up	≤ 1.3kV	≤ 1.5kV	≤ 1.8kV	≤ 2.0kV	Remote signaling contact (floating switch)	Yes (optional accessory)
Response time tA	≤ 25 ns				Switch capacity	AC: 250V/0.5A; 125V/3 A
Max. back-up fuse	125 A gl/gG				Cross-sectional area for remote signaling terminals	Max. 1.5 mm2 solid / flexible
Short-circuit withstand current	25kA/50Hz

Normal Running And Installation Conditions

● Ambient air temperature: -5℃~+40℃, the average value should not exceed +35℃ within 24 hours.

● Elevation: at most 2000m.

● Atmospheric conditions: When the temperature at 40℃, the relative humidity of atmosphere should be at the most 50%. When at relatively low temperatures, it could have higher relative humidity. Monthly maximum relative humidity could be not more than 90%. Special measures should be taken due to occurrence of dews.

● Class of pollution: Class 3.

● Installation category: III.

● Installation conditions: Degree of inclination between fitting surface and vertical surface should not exceed ±5°.

● Impact shock: Product should be installed and used in the place where often shakes and impacts.

Construction Features

● Adopt building block system to mount auxiliary contactor block, air delay auxiliary=contactor, thermal overload relay and so on, which can be combined into multiple derived series product.

● Contactor has the advantage of Small volume, light, low consumption, high life, good safety.

● Main contactor below 32A has 1 N/C or 1 N/O, there is 1 N/C and 1 N/O above 40A. Contactor can be assembled with F4F8 auxiliary contact or Time-delay block.

● Contactor can not only use screw mounting, but also use 35mm[ACC1-09~95], 75mm[ACC1-40~95] and 2 35mm[ACC1-115~170] international standard Din-rail mounting .

Optional sockets type

827957433_660

Guidance for Selection of Contactor

THREE PHASE ASYNCHRONOUS squirrel-cage motor breaking current under AC-3 Utilization category, it is motor rated running current.

NSW1-2000-3P

Overall and Mounting Dimensions

NSW1-2000-3P

Specification

Model	Amax	Bmax	Cmax	Dmax	Emax	Fmax	a	b
ACC1-09-12	47	76	82	115	135	73	35	50/60	4.5
ACC1-18	47	76	87	120	140	73	35	50/60	4.5
ACC1-25	57	86	95	128	149	83	40	50/60	4.5
ACC1-32	57	86	100	133	154	83	40	50/60	4.5
ACC1-4011-6511	77	129	115	150	168	113	40	100/110	6.5
ACC1-40004-65004	85	129	115	150	168	113	40	100/110	6.5
ACC1-40008-65008	85	126	126	150	168	111	40	100/110	6.5
ACC1-8011-9511	87	129	127	155	175	113	40	100/110	6.5
ACC1-80004-95004	97	129	123	155	175	123	40	100/110	6.5
ACC1-80008-95008	97	129	134	155	175	123	40	100/110	6.5
ACC1-115-170	120	162	133	155	173	-	130	95/110	6.5

FAQ

What is the NKC1-63DC 6KA MCB Mini Circuit Breaker?

The NKC1-63DC 6KA MCB Mini Circuit Breaker is a type of circuit breaker specifically designed to protect electrical circuits from overcurrent, short circuit, and electrical faults.

What is the maximum current rating of the NKC1-63DC 6KA MCB Mini Circuit Breaker?

The NKC1-63DC 6KA MCB Mini Circuit Breaker has a maximum current rating of 63 amps.

Can the NKC1-63DC 6KA MCB Mini Circuit Breaker be used for both commercial and residential applications?

Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker is suitable for both commercial and residential applications.

What are the typical applications for the NKC1-63DC 6KA MCB Mini Circuit Breaker?

The NKC1-63DC 6KA MCB Mini Circuit Breaker is commonly used in distribution boards, control panels, lighting circuits, power outlets, and other electrical installations.

Does the NKC1-63DC 6KA MCB Mini Circuit Breaker provide any additional features or protection?

Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker offers overload protection, short circuit protection, and fault protection, ensuring safe and reliable operation of electrical circuits.

Is the NKC1-63DC 6KA MCB Mini Circuit Breaker compatible with DC circuits only?

Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker is specifically designed for DC (direct current) circuits and may not be suitable for AC (alternating current) applications.
