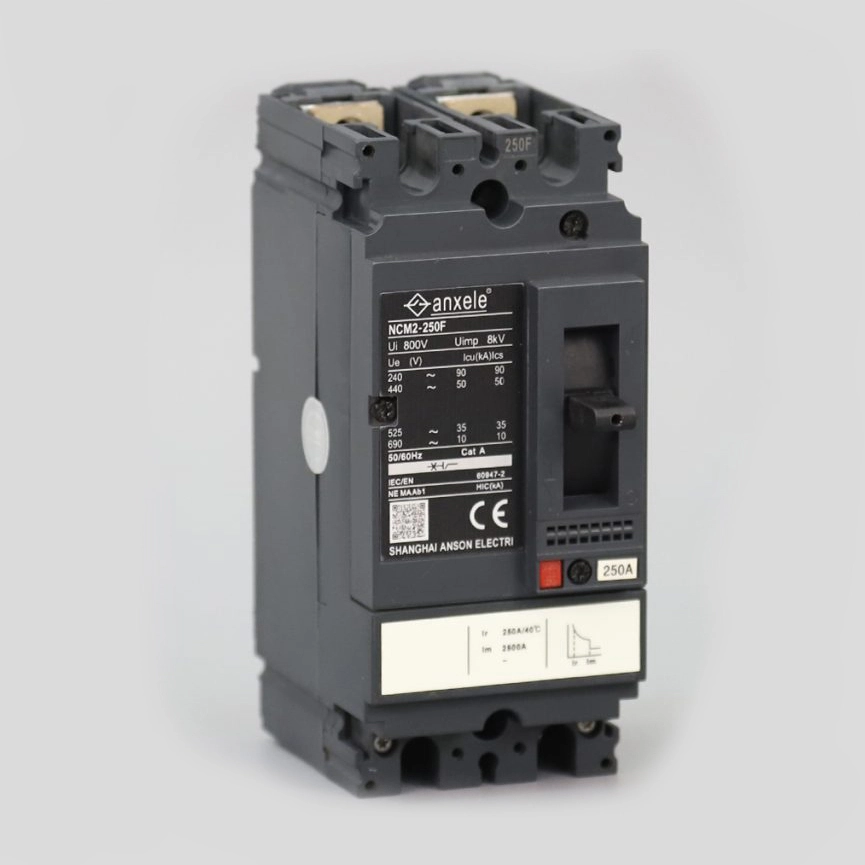

Circuit breaker, ComPacT NCM2(NSX250F)AC, 25kA/415VAC, 2 poles

Anson electric ComPacT NCM2(NSX250F) is a complete 2 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 25kA rms at 240VAC 50/60Hz. The operational voltage is 277VAC 50/60Hz. This product embeds a 160A rating thermal-magnetic trip unit (TMD).

Model NO.:

ComPacT NCM2(NSX250F)

Production Capacity:

300, 000 PCS/Monthly

Transport Package:

Standard Export Carton 120PCS

Payment Terms:

L/C, T/T, Paypal

Certification:

ISO9001-2000, CE, CB, RoHS

Origin:

Zhejiang

Inquiry

Write a Review

Product Introduction

TMD trip unit provides an fixed thermal overload protection and a fixed magnetic protection. The dimension is (161mm x 70mm x 86mm ). It is compliant with international standards (EN/IEC 60947), CCC, CE and marine specifications. Compact NCM2-250F is part of Anson Electric EcoStruxure Power architecture.

Specifications

NFPV-32B Fuse Holder

Connection and Installation

NFPV-32B Fuse Holder
Pole		1P
According to		IEC 60269-6
Electrical Characteristics
Rated Working Voltage	Ue	1000V DC
Breaking Capacity		33KA
Max Power Dissipation		3W
Contol and Indication
Operating State/Fault Indication		Indicator Light OFF/Indicator Light ON

Connection and Installation
Wire		2.5mm2~25
Terminal Screws		M5
Torque	Nm	2.5
Degree of Protection		IP20
Installation Environment
Fuse Size		10×38 mm
Operating Temperature Range	TU	-30℃~+70℃
For Mounting On		TH35-7.5/DIN35
Pollution Degree		3
Relative Humidity		+20 ℃≤ 95%,+40℃≤50%
Weight		0.07kg Per pole
Installation Class		Ⅲ

Ange	ComPacT	[Icu] Rated ultimate short-circuit breaking capacity	85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Product name	ComPacT NCM2		25 kA Icu at 380/415 V AC 50/60 Hz 1P conforming to IEC 60947-2
Device short name	NCM2-160F		25 kA Icu at 440 V AC 50/60 Hz 1P conforming to IEC 60947-2
Product or component type	Circuit breaker		18 kA Icu at 500/525 V AC 50/60 Hz 2P conforming to IEC 60947-2
Device application	Distribution		8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Poles description	2P		85 kA Icu at 250 V DC 50/60 Hz 1 pole conforming to IEC 60947-2
Protected poles description	2D		85 kA Icu at 500 V DC 50/60 Hz 2 poles in series conforming to IEC 60947-2
[In] Rated current	160 A at 40 °C	Performance level	M 25 kA 415 V AC
[Ue] Rated operational voltage	690 V AC 50/60 Hz	Trip unit name	TM-D
Network type	AC	Trip unit technology	Thermal-magnetic
Network frequency	50/60 Hz	Trip unit protection functions	LI
Suitability for isolation	Yes conforming to EN/IEC 60947-2	Control type	Toggle
Utilisation category	Category A	Circuit breaker mounting mode	Fixed

Key Features

● Intelligence, zero flashover, isolating function;

● Higher current breaking and short circuit withstand capacity;

● Overload long-time delay, short-circuit short-time delay, short-circuit instant and ground fault functions (optional);

● The drawer seat has three position indications, “Connect”, “Test” and “Separate”;

● It can realize intelligent network monitoring, and can be applied to Modbus, Profibus, Devicenet, CAN and TCP communication protocols, facilitating in integrated management of users;

● It can be equipped with FDM3 module, to realize remote warning and monitoring;

● It accords with IEC60947-2 and GB14048.2 standards;

● The circuit breaker has obtained the “CCC” mark.

Product Display

carousel-2

carousel-5

carousel-7

Optional sockets type

827957433_660

FAQ

What is the NKC1-63DC 6KA MCB Mini Circuit Breaker?

The NKC1-63DC 6KA MCB Mini Circuit Breaker is a type of circuit breaker specifically designed to protect electrical circuits from overcurrent, short circuit, and electrical faults.

What is the maximum current rating of the NKC1-63DC 6KA MCB Mini Circuit Breaker?

The NKC1-63DC 6KA MCB Mini Circuit Breaker has a maximum current rating of 63 amps.

Can the NKC1-63DC 6KA MCB Mini Circuit Breaker be used for both commercial and residential applications?

Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker is suitable for both commercial and residential applications.

What are the typical applications for the NKC1-63DC 6KA MCB Mini Circuit Breaker?

The NKC1-63DC 6KA MCB Mini Circuit Breaker is commonly used in distribution boards, control panels, lighting circuits, power outlets, and other electrical installations.

Does the NKC1-63DC 6KA MCB Mini Circuit Breaker provide any additional features or protection?

Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker offers overload protection, short circuit protection, and fault protection, ensuring safe and reliable operation of electrical circuits.

Is the NKC1-63DC 6KA MCB Mini Circuit Breaker compatible with DC circuits only?

Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker is specifically designed for DC (direct current) circuits and may not be suitable for AC (alternating current) applications.

If you have any questions, please feel free to contact Anson Electric
