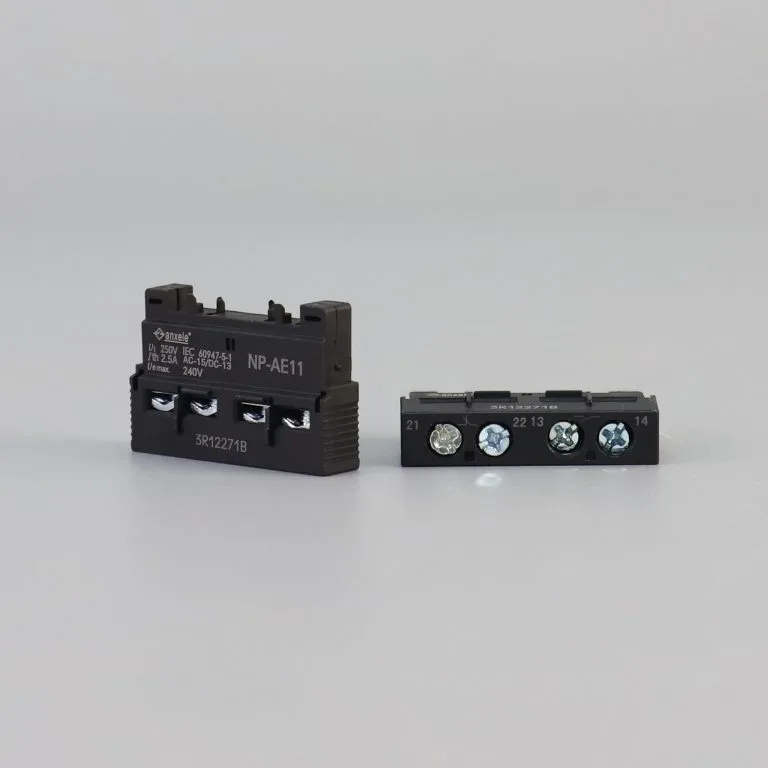

NP-AE11 Motor breaker top auxiliary for NPM2, NPM3 ect

The NP-AE11 is a compact auxiliary contact module designed for NPM2, NPM3, and compatible motor circuit breakers, providing 2NO instantaneous contacts to enhance control and monitoring capabilities. With robust 100,000-cycle mechanical durability, it operates reliably at 2A/240V AC or 1A/60V DC, supporting diverse automation and protection circuits.

Model NO.:

NP-AE11

Production Capacity:

300, 000 PCS/Monthly

Transport Package:

Standard Export Carton 120PCS

Payment Terms:

L/C, T/T, Paypal

Certification:

ISO9001-2000, CE, CB, RoHS

Origin:

Zhejiang

Inquiry

Write a Review

Product Introduction

Featuring front-mounted screw clamp terminals and a slim profile, it integrates seamlessly into tight spaces while offering 1NO+1NC contact configuration for flexible signaling. Certified to IEC, CE, and RoHS (Green Premium) standards, it ensures compliance with global safety and environmental requirements.

Ideal for industrial motor control panels, its 5mA minimum switching current and 17V minimum switching voltage enable precise low-power circuit management. Sold in sets of 10, this module delivers cost-effective scalability for systems demanding high reliability and easy maintenance.

Specifications

Electrical Features

Mechanical Features

Installation

NP-AE11 Motor breaker top auxiliary for NPM2, NPM3 ect 3

● Type (wave form of the earth leakage sensed): AC,A.
● Thermo-magnetic release characteristic: B,C.
● Rated current In: 6, 10, 16, 20, 25, 32, 40A.
● Poles: 1P+N.
● Rated voltage Ue: 230/240V.
● Rated sensitivity I△n: 0.01, 0.03, 0.1, 0.3A.
● Rated residual making and breaking capacity I△m:500A.

NP-AE11 Motor breaker top auxiliary for NPM2, NPM3 ect 4

● Rated short-circuit capacity lcn: 4,500/6,000A.
● Break time under I△n: ≤0.1s.
● Rated frequency: 50/60Hz.
● Rated impulse withstand voltage (1.2/50)Uimp: 4,000A.
● Dielectric TEST voltage at ind. Freq. for 1min: 2kV.
● Insulation voltage UI: 300V.
● Pollution degree: 2.

● Electrical life: 2,000.

● Mechanical life: 2,000.

● Contact position indicator: Yes.

● Protection degree: IP20.

● Ambient temperature (with daily average≤35℃): -5℃…+40℃.

● Storage temperation: -25℃…+70℃.

● Terminal connection type: Cable/Pin-type busbar.

● Terminal size top/bottom for cable: 16mm2 18-5AWG.

● Terminal size top/bottom for busbar: 16mm2 18-5AWG.

● Tightening torque 2.0 N*m 11In-Ibs.

● Mounting: On DIN rail EN 60715 (35mm) by means of

● Fast clip device.

● Connection: From top.

Main

Complementary

Main
Range	NPM2 and NPR2,NPM2I,NPM3,
Device short name	NPAE
Product or component type	Auxiliary contact block
Product compatibility	NPM2ME,NPM2M,NPM3P,NPR2P,NPM3M
mounting location	Front side
Pole contact composition	1 NO + 1 NC
Quantity per set	Set of 10

Complementary
[Ui] rated insulation voltage	300 V conforming to UL 508
	300 V conforming to CSA C22.2 No 14
	250 V conforming to IEC 60947-1
[Ue] rated operational voltage	24…240 V AC
[Ue] rated operational voltage	24…60 V DC
[Ith] conventional free air thermal current	2.5 A
Mechanical durability	100000 cycles
Minimum switching current	5 mA
Minimum switching voltage	17 V
Protection type	GG fuse 10 A
Protection type	GB2CB06 circuit breaker 10 A
Rated operational power in VA	120 VA at 110…120 V AC-15 – electrical durability: 100000 cycles
	120 VA at 230…240 V AC-15 – electrical durability: 100000 cycles
	48 VA at 24 V AC-15 – electrical durability: 100000 cycles
	60 VA at 48 V AC-15 – electrical durability: 100000 cycles
Rated operational power in W	15 W at 48 V DC-13 – electrical durability: 100000 cycles
	24 W at 24 V DC-13 – electrical durability: 100000 cycles
	9 W at 60 V DC-13 – electrical durability: 100000 cycles
Tightening torque	1.4 N.m – on screw clamp terminals
Height	11 mm
Width	45 mm
Depth	29 mm
Net weight	0.02 kg

NL1-C40
SPD to EN 61643-II	Type 2				Operating temperature range TU	-40℃…+80℃
SPD to IEC 61643-I	Class II				Cross-sectional area (min.)	1.5 mm2 solid / flexible
SPD to VDE 0675-6	Class C				Cross-sectional area (max.)	35 mm2 stranded / 25 mm2 flexible
Max. continuous voltage Uc	275 V	320 V	385 V	440 V	Mounting on	35 mm DIN rail acc. To EN 60715
Nominal discharge current (8/20μs) In	20 kA				Degree of protection	IP 20
Max. discharge current (8/20μs) Imax	40 kA				Housing material	Thermoplastic; extinguishing degree UL 94 V-0
Voltage protection level Up	≤ 1.3kV	≤ 1.5kV	≤ 1.8kV	≤ 2.0kV	Remote signaling contact (floating switch)	Yes (optional accessory)
Response time tA	≤ 25 ns				Switch capacity	AC: 250V/0.5A; 125V/3 A
Max. back-up fuse	125 A gl/gG				Cross-sectional area for remote signaling terminals	Max. 1.5 mm2 solid / flexible
Short-circuit withstand current	25kA/50Hz

Normal Running And Installation Conditions

● Ambient air temperature: -5℃~+40℃, the average value should not exceed +35℃ within 24 hours.

● Elevation: at most 2000m.

● Atmospheric conditions: When the temperature at 40℃, the relative humidity of atmosphere should be at the most 50%. When at relatively low temperatures, it could have higher relative humidity. Monthly maximum relative humidity could be not more than 90%. Special measures should be taken due to occurrence of dews.

● Class of pollution: Class 3.

● Installation category: III.

● Installation conditions: Degree of inclination between fitting surface and vertical surface should not exceed ±5°.

● Impact shock: Product should be installed and used in the place where often shakes and impacts.

Construction Features

● Adopt building block system to mount auxiliary contactor block, air delay auxiliary=contactor, thermal overload relay and so on, which can be combined into multiple derived series product.

● Contactor has the advantage of Small volume, light, low consumption, high life, good safety.

● Main contactor below 32A has 1 N/C or 1 N/O, there is 1 N/C and 1 N/O above 40A. Contactor can be assembled with F4F8 auxiliary contact or Time-delay block.

● Contactor can not only use screw mounting, but also use 35mm[ACC1-09~95], 75mm[ACC1-40~95] and 2 35mm[ACC1-115~170] international standard Din-rail mounting .

Product Display

carousel-2

carousel-5

carousel-7

Guidance for Selection of Contactor

THREE PHASE ASYNCHRONOUS squirrel-cage motor breaking current under AC-3 Utilization category, it is motor rated running current.

NSW1-2000-3P

FAQ

What is the NKC1-63DC 6KA MCB Mini Circuit Breaker?

The NKC1-63DC 6KA MCB Mini Circuit Breaker is a type of circuit breaker specifically designed to protect electrical circuits from overcurrent, short circuit, and electrical faults.

What is the maximum current rating of the NKC1-63DC 6KA MCB Mini Circuit Breaker?

The NKC1-63DC 6KA MCB Mini Circuit Breaker has a maximum current rating of 63 amps.

Can the NKC1-63DC 6KA MCB Mini Circuit Breaker be used for both commercial and residential applications?

Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker is suitable for both commercial and residential applications.

What are the typical applications for the NKC1-63DC 6KA MCB Mini Circuit Breaker?

The NKC1-63DC 6KA MCB Mini Circuit Breaker is commonly used in distribution boards, control panels, lighting circuits, power outlets, and other electrical installations.

Does the NKC1-63DC 6KA MCB Mini Circuit Breaker provide any additional features or protection?

Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker offers overload protection, short circuit protection, and fault protection, ensuring safe and reliable operation of electrical circuits.

Is the NKC1-63DC 6KA MCB Mini Circuit Breaker compatible with DC circuits only?

Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker is specifically designed for DC (direct current) circuits and may not be suitable for AC (alternating current) applications.
