Product details of the terminal block manufacturers
Product Introduction
The production of anxele terminal block manufacturers follows the international standards and green norms. Under the supervision of a professional quality inspector, the product is inspected at all stages of production to ensure good quality. For Shanghai Anson Electric Technology Co.,Ltd., a good product should be supported with a better after-sale service.

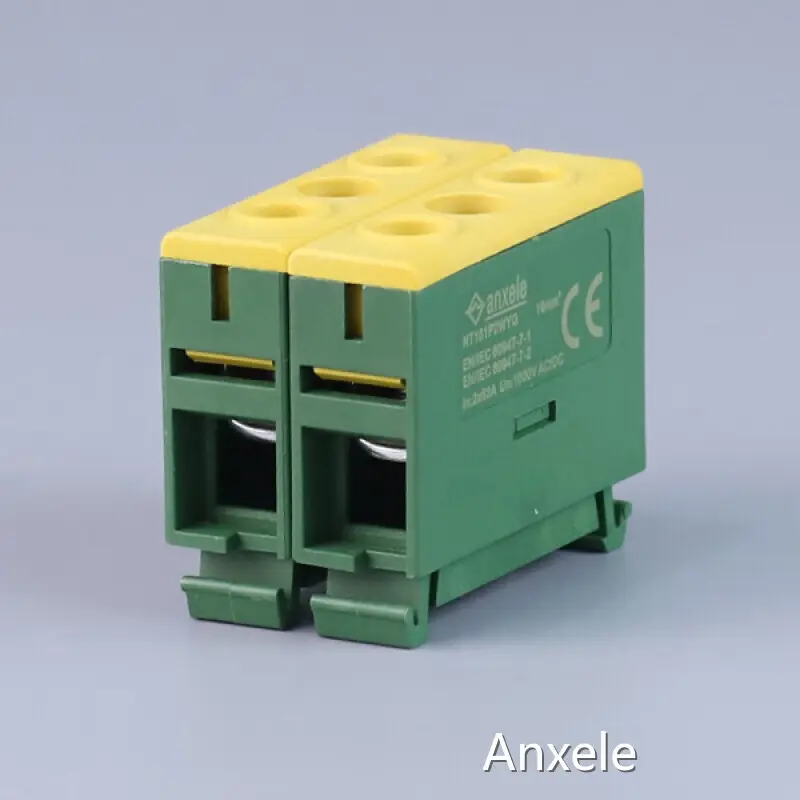

Certified to EN/IEC 60947-7-1/7-2, the NT16 mounts on DIN rails or via screws, accommodating various industrial, commercial, and renewable energy applications.
Laser-etched markings and environmentally friendly materials ensure durability and traceability in robust, long-lasting electrical systems.
Electrical Features
Mechanical Features
Installation
● Type (wave form of the earth leakage sensed): AC,A. ● Thermo-magnetic release characteristic: B,C. ● Rated current In: 6, 10, 16, 20, 25, 32, 40A. ● Poles: 1P+N. ● Rated voltage Ue: 230/240V. ● Rated sensitivity I△n: 0.01, 0.03, 0.1, 0.3A. ● Rated residual making and breaking capacity I△m:500A.
● Rated short-circuit capacity lcn: 4,500/6,000A. ● Break time under I△n: ≤0.1s. ● Rated frequency: 50/60Hz. ● Rated impulse withstand voltage (1.2/50)Uimp: 4,000A. ● Dielectric TEST voltage at ind. Freq. for 1min: 2kV. ● Insulation voltage UI: 300V. ● Pollution degree: 2.
● Electrical life: 2,000.
● Mechanical life: 2,000.
● Contact position indicator: Yes.
● Protection degree: IP20.
● Ambient temperature (with daily average≤35℃): -5℃…+40℃.
● Storage temperation: -25℃…+70℃.
● Terminal connection type: Cable/Pin-type busbar.
● Terminal size top/bottom for cable: 16mm2 18-5AWG.
● Terminal size top/bottom for busbar: 16mm2 18-5AWG.
● Tightening torque 2.0 N*m 11In-Ibs.
● Mounting: On DIN rail EN 60715 (35mm) by means of
● Fast clip device.
● Connection: From top.
| Name |
Date |
Unit |
| Model |
NT161P2YG |
1P,2P,3P |
| Number of connection points |
2 |
|
| Number of potentials |
1 |
|
| Color |
black, brown, grey, red, blue(N)and yellow/green(PE) |
|
| Length |
43.5 |
mm |
| Width |
13.6 |
mm |
| Height |
37.1 |
mm |
| Pollution degree |
3 |
|
| Insulation material group |
Ⅰ |
|
| Rated surge voltage |
8 |
KV |
| Rated voltage |
1000 |
V |
| Nominal current |
63 |
A |
| Min. connection capacity |
1.5/16 |
mm²/AWG |
| Max. connection capacity |
16/0 |
mm²/AWG |
| Line directions |
Side inlet |
|
| Strip length |
16mm |
|
| Insulation material |
PA66 |
|
| Flame-retarded rating |
UL94 V-0 |
|
3-Phase Supply Control Relays Dimensions and Mounting
| Earth Contact Position |
6h |
| Rated Current(A) |
250 |
| Poles |
4 |
| Dimension(mm) |
A |
292 |
| B |
118 |
| C |
82 |
| D |
75 |
| E |
130 |
| Cable nominal cross-sectional area(mm2) |
70~90 |
1
What is the NKC1-63DC 6KA MCB Mini Circuit Breaker?
The NKC1-63DC 6KA MCB Mini Circuit Breaker is a type of circuit breaker specifically designed to protect electrical circuits from overcurrent, short circuit, and electrical faults.
2
What is the maximum current rating of the NKC1-63DC 6KA MCB Mini Circuit Breaker?
The NKC1-63DC 6KA MCB Mini Circuit Breaker has a maximum current rating of 63 amps.
3
Can the NKC1-63DC 6KA MCB Mini Circuit Breaker be used for both commercial and residential applications?
Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker is suitable for both commercial and residential applications.
4
What are the typical applications for the NKC1-63DC 6KA MCB Mini Circuit Breaker?
The NKC1-63DC 6KA MCB Mini Circuit Breaker is commonly used in distribution boards, control panels, lighting circuits, power outlets, and other electrical installations.
5
Does the NKC1-63DC 6KA MCB Mini Circuit Breaker provide any additional features or protection?
Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker offers overload protection, short circuit protection, and fault protection, ensuring safe and reliable operation of electrical circuits.
6
Is the NKC1-63DC 6KA MCB Mini Circuit Breaker compatible with DC circuits only?
Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker is specifically designed for DC (direct current) circuits and may not be suitable for AC (alternating current) applications.
