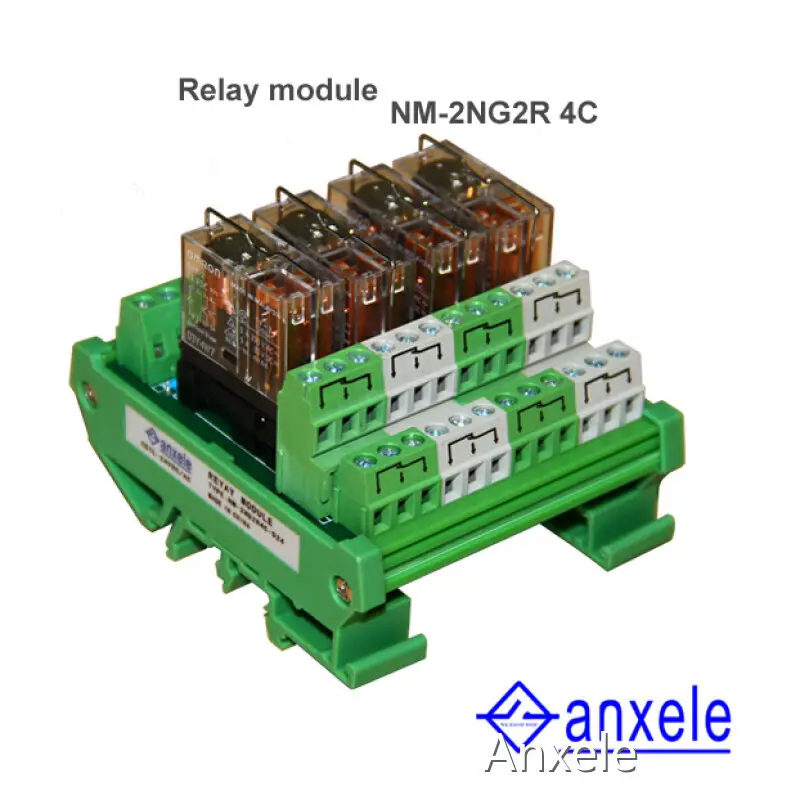

Relay Module by Anxele
Product details of the relay module
Quick Detail
The raw materials of anxele relay module have to undergo quality checks before they enter the production floor. Stringent testings are performed to ensure quality, performance, and longevity. relay module is one of the main products of Anxele. With wide application, our product can be applied to different industries and fields. And it is deeply loved and favored by customers. The product is in compliance with the market trend.
Product Description
Compared with other similar products in the market, Anxele's relay module is provided with the following outstanding advantages.
Product Introduction
It is widely used in the interface between peripheral devices, control signals and adjustment device of automation process to achieve matching of frequency and power.
Technical parameter
| Type | NM-2NG2R 1C DC24 | NM-2NG2R 2C DC24 | NM-2NG2R 4C DC24 |
| Specification | 24VDC/AC-1C | 2x24VDC/AC-1C | 4x24VDC/AC-1C |
| Size(L x W x H) | 90x18x200mm | 90x34x200mm | 90x66x200mm |
| Technical data | / | / | / |
| Input signal | / | / | / |
| Rated voltage | 24VDC/AC | 24VDC/AC | 24VDC/AC |
| Max voltage | 110% rated value | 110% rated value | 110% rated value |
| Rated current | 21.8mA | 21.8mA | 21.8mA |
| Operating voltage | 80% rated voltage | 80% rated voltage | 80% rated voltage |
| Resetting voltage | 10% rated voltage | 10% rated voltage | 10% rated voltage |
| Consumption power | ≈0.36W | ≈0.36W | ≈0.36W |
| Output contact | 1 group | 2 group | 4 group |
| Contact type | 1-pole transfer for single contact | 1-pole transfer for each single contact | 1-pole transfer for each single contact |
| Contact load | 8A250VAC/5A28VDC | 8A250VAC/5A28VDC | 8A250VAC/5A28VDC |
| Max transfer voltage | 380VAC/125VDC | 380VAC/125VDC | 380VAC/125VDC |
| Max transfer power | 2200VAC/200W | 2200VAC/200W | 2200VAC/200W |
| Max operating frequency | 1800 times/h | 1800 times/h | 1800 times/h |
| Mechanical life | 2×10,000,000 operations | 2×10,000,000 operations | 2×10,000,000 operations |
| Electrical life | 1×100,000 operations | 1×100,000 operations | 1×100,000 operations |
| Net weight | 50g | 90g | 165g |
| Wiring diagramNote | Input voltage can be customized, see instruction for details; an example of 24V. | ||
Product Details
Graphic symbols of electromagnetic relayCoil and contact symbols are shown in the figure below:
● The series of relay products include DC coil and AC coil. Contacts include 1-pole NO, NC, transfer;
● Note them when ordering if you need over-voltage protection, slow flow protection, over-current protection (over-voltage and over-current protection can be chosen at the same time; 2-pole or over 2-pole of relay contacts can only add slow flow protection);
● .Conventional products have AC and DC input, voltage range: 24VAC/DC;
● Customed voltage range: 3-48VDC, 110VAC, 220VAC(380VAC in R & D);
● Relay module with over 16 groups can be customized;
● Wiring diagram of relay module: an example of 24VDC/A.
Details
● VV for common input terminal, A, B for the control terminal;
● When: VV input 24VDC positive, A and B for 24VDC negative;
● When: VV input 24VDC negative, A and B for 24 VDC positive;
● 24VAC input same as 24VDC;
● Input A and B control relays A and B respectively;
● Input method of 4 groups, 8 groups, 16 groups are all the same, please refer to this.
