Product details of the ev charging stations
Quick Overview
anxele ev charging stations is manufactured under the 5S standard production process. Its premium quality highly meets international standard specifications. The ev charging stations developed by our company can be applied in different fields. Shanghai Anson Electric Technology Co.,Ltd. would increase investment in innovation.
Product Introduction
Next, the details of ev charging stations are shown for you.
Product Introduction

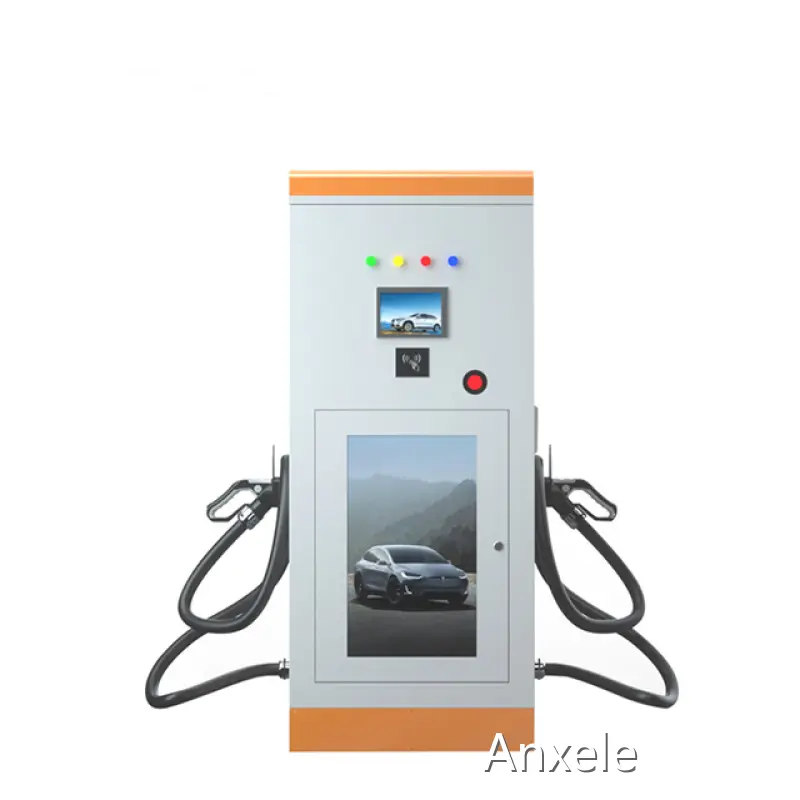

NEV-DC 60kW dual-gun DC charging pile is a DC fast charging device that integrates high efficiency, intelligence and high reliability, and is designed for diversified electric vehicle charging scenarios. The product adopts a nuclear-grade high-power module platform, combined with full-bridge phase-shifted soft switching technology and efficient three-phase PFC topology circuit (power factor>0.99, harmonic distortion rate≤5%), which significantly improves system safety and energy conversion efficiency, while reducing energy consumption. Its digital current sharing technology and module sleep polling technology further optimize the current sharing accuracy and anti-interference ability under dynamic loads, ensuring the efficient and stable coordination of multiple modules.
The Main Technical Parameters
| Detailed Specification | Rated Power | 60KW |
| Charging Equipment | User Interface | 7 inch LCD color display touch screen |
| Installation method | Floor-standing | |
| Way of routing | Down and down | |
| Equipment size | 635*423*1600（mm） | |
| Input voltage | AC380V±20% | |
| Input frequency | 45~65Hz | |
| The output voltage | 200V-500V | |
| Single gun output current range | 0-100A | |
| The output voltage | 200V-750V | |
| Single gun output current range | 0-80A | |
| The output voltage | 200V-750V (constant power) | |
| Single gun output current range | 0-160A | |
| Cable length | 5m | |
| Measurement accuracy | Measurement accuracy | |
| Electrical index | Ucurrent limit protection value | ≥110% |
| Voltage regulation accuracy | ≤±0.5% | |
| Steady flow accuracy | ≤±1% | |
| Ripple coefficient | ≤±0.5% | |
| Effectiveness | ≥94.5% | |
| Power factor | ≥0.99 | |
| Harmonic content THD | ≤5% | |
| Feature design | HMI | 4.3 inch LCD color display touch screen |
| Charging mode | Auto full / fixed power / fixed amount / fixed time | |
| Payment method | APP payment / credit card payment / scan code payment | |
| Communication Interface | Ethernet 2/3/4G (optional) | |
| Safety design | Executive standard | GBT 20234、GB/T 18487、GB/T 27930、NBT 33008 |
| security function | Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse connection protection, lightning protection, emergency stop protection, leakage protection | |
| Environmental indicatorsInsulation material groupRated surge voltageRated voltageNominal current | Operating temperature | —25℃~+50℃ |
| Working humidity | 5%~95% non-condensing cream | |
| Working elevation | <3000m | |
| Protection level | IP54 | |
| cooling method | Forced air cooling | |
| Noise control | ≤60dB | |
| MTBF | 100,000 hours |
The device supports intelligent charging management, covering timing, quantitative, fixed and automatic charging modes, and is equipped with full-process monitoring and protection functions, and is as easy to operate as a "fool". Users can view the charging amount, time, electricity price and equipment status in real time through the interactive interface to meet the transparent charging needs. Compatible with RS-485 wired networking and GPRS wireless communication, it is convenient for remote monitoring and data management, and with module hot-swap technology, it greatly shortens maintenance downtime.
It can adapt to harsh environments (-20℃ to 50℃) and can be widely used in special stations such as urban buses, taxis, logistics vehicles, as well as public parking lots, commercial areas, highway service areas and other scenarios. It provides all-weather and efficient energy replenishment services for passenger cars, commuter cars and commercial vehicles, and is an ideal infrastructure for smart transportation and green energy networks.
