Electrical Features
Mechanical Features
Installation
● Type (wave form of the earth leakage sensed): AC,A. ● Thermo-magnetic release characteristic: B,C. ● Rated current In: 6, 10, 16, 20, 25, 32, 40A. ● Poles: 1P+N. ● Rated voltage Ue: 230/240V. ● Rated sensitivity I△n: 0.01, 0.03, 0.1, 0.3A. ● Rated residual making and breaking capacity I△m:500A.
● Rated short-circuit capacity lcn: 4,500/6,000A. ● Break time under I△n: ≤0.1s. ● Rated frequency: 50/60Hz. ● Rated impulse withstand voltage (1.2/50)Uimp: 4,000A. ● Dielectric TEST voltage at ind. Freq. for 1min: 2kV. ● Insulation voltage UI: 300V. ● Pollution degree: 2.
● Electrical life: 2,000.
● Mechanical life: 2,000.
● Contact position indicator: Yes.
● Protection degree: IP20.
● Ambient temperature (with daily average≤35℃): -5℃…+40℃.
● Storage temperation: -25℃…+70℃.
● Terminal connection type: Cable/Pin-type busbar.
● Terminal size top/bottom for cable: 16mm2 18-5AWG.
● Terminal size top/bottom for busbar: 16mm2 18-5AWG.
● Tightening torque 2.0 N*m 11In-Ibs.
● Mounting: On DIN rail EN 60715 (35mm) by means of
● Fast clip device.
● Connection: From top.
| Type |
NM-2NG2R 1C DC24 |
NM-2NG2R 2C DC24 |
NM-2NG2R 4C DC24 |
| Specification |
24VDC/AC-1C |
2x24VDC/AC-1C |
4x24VDC/AC-1C |
| Size(L x W x H) |
90x18x200mm |
90x34x200mm |
90x66x200mm |
| Technical data |
/ |
/ |
/ |
| Input signal |
/ |
/ |
/ |
| Rated voltage |
24VDC/AC |
24VDC/AC |
24VDC/AC |
| Max voltage |
110% rated value |
110% rated value |
110% rated value |
| Rated current |
21.8mA |
21.8mA |
21.8mA |
| Operating voltage |
80% rated voltage |
80% rated voltage |
80% rated voltage |
| Resetting voltage |
10% rated voltage |
10% rated voltage |
10% rated voltage |
| Consumption power |
≈0.36W |
≈0.36W |
≈0.36W |
| Output contact |
1 group |
2 group |
4 group |
| Contact type |
1-pole transfer for single contact |
1-pole transfer for each single contact |
1-pole transfer for each single contact |
| Contact load |
8A250VAC/5A28VDC |
8A250VAC/5A28VDC |
8A250VAC/5A28VDC |
| Max transfer voltage |
380VAC/125VDC |
380VAC/125VDC |
380VAC/125VDC |
| Max transfer power |
2200VAC/200W |
2200VAC/200W |
2200VAC/200W |
| Max operating frequency |
1800 times/h |
1800 times/h |
1800 times/h |
| Mechanical life |
2×10,000,000 operations |
2×10,000,000 operations |
2×10,000,000 operations |
| Electrical life |
1×100,000 operations |
1×100,000 operations |
1×100,000 operations |
| Net weight |
50g |
90g |
165g |
| Wiring diagramNote |
Input voltage can be customized, see instruction for details; an example of 24V. |
| |
![Electrical Power Distribution Box by Anxele 4]() |
![Electrical Power Distribution Box by Anxele 5]() |
![Electrical Power Distribution Box by Anxele 6]() |
● Chips are electrically insulated form bottom plate.
● Package in complance with international standard.Pressure type, excellent temperature characteristics and power cycling capability.
● 350A below modules are forced air cooling;400A above modules can be selected by air cooling or water cooling.
● AC, DC motor control,Different kind of rectifying power supply.
● Industrial heating and control,Light adjustment,Non-contact switch.
● Motor softstarter,Static reactive power compensation.
● Welding equipment, Frequency transformer,UPS,Battery charging and discharging.
● Size range can be customized.
● Textured powder coated finish.
● Protection class IP40.
● Rail Mounted MCB’s and RCBO’s.
● Fixed installation.
● RAL 7035 as standard – other colours optional.…

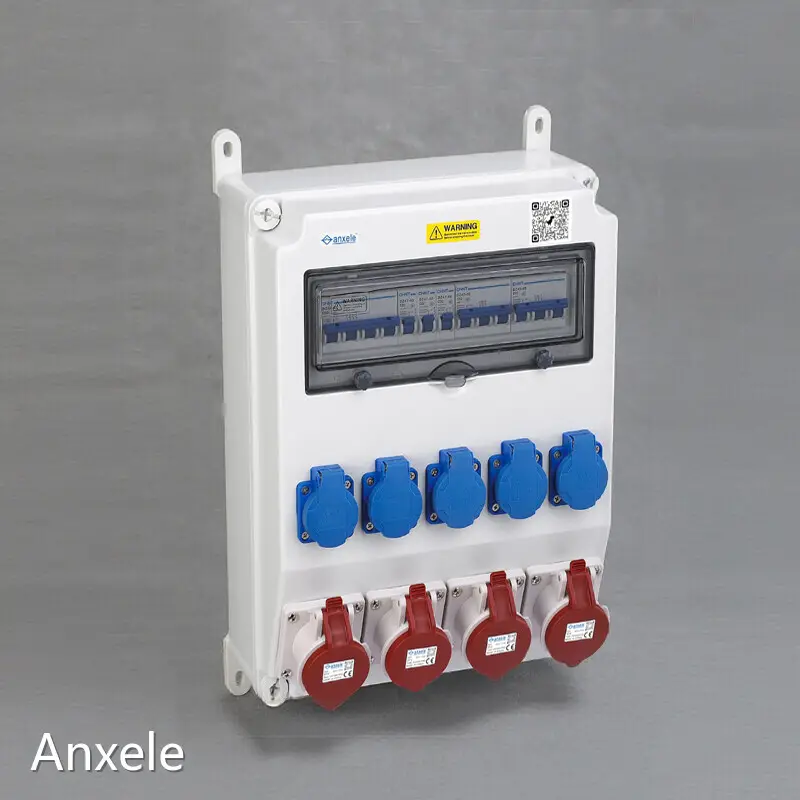

The box integrates 63A 4P, 3P 32A, and 1P 16A MCBs for circuit protection, along with 5×2P 16A and 4×3P+E 16A 400V IP44 sockets, offering versatile power distribution for tools, machinery, and renewable energy systems.
Its compact design supports both portable and fixed installations, ensuring dust/water resistance (IP67) and reliable performance in harsh conditions, making it ideal for construction, emergency power, and off-grid solar applications.
3-Phase Supply Control Relays Dimensions and Mounting
1
What is the NKC1-63DC 6KA MCB Mini Circuit Breaker?
The NKC1-63DC 6KA MCB Mini Circuit Breaker is a type of circuit breaker specifically designed to protect electrical circuits from overcurrent, short circuit, and electrical faults.
2
What is the maximum current rating of the NKC1-63DC 6KA MCB Mini Circuit Breaker?
The NKC1-63DC 6KA MCB Mini Circuit Breaker has a maximum current rating of 63 amps.
3
Can the NKC1-63DC 6KA MCB Mini Circuit Breaker be used for both commercial and residential applications?
Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker is suitable for both commercial and residential applications.
4
What are the typical applications for the NKC1-63DC 6KA MCB Mini Circuit Breaker?
The NKC1-63DC 6KA MCB Mini Circuit Breaker is commonly used in distribution boards, control panels, lighting circuits, power outlets, and other electrical installations.
5
Does the NKC1-63DC 6KA MCB Mini Circuit Breaker provide any additional features or protection?
Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker offers overload protection, short circuit protection, and fault protection, ensuring safe and reliable operation of electrical circuits.
6
Is the NKC1-63DC 6KA MCB Mini Circuit Breaker compatible with DC circuits only?
Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker is specifically designed for DC (direct current) circuits and may not be suitable for AC (alternating current) applications.
