Electrical Features
Mechanical Features
Installation
● Type (wave form of the earth leakage sensed): AC,A. ● Thermo-magnetic release characteristic: B,C. ● Rated current In: 6, 10, 16, 20, 25, 32, 40A. ● Poles: 1P+N. ● Rated voltage Ue: 230/240V. ● Rated sensitivity I△n: 0.01, 0.03, 0.1, 0.3A. ● Rated residual making and breaking capacity I△m:500A.
● Rated short-circuit capacity lcn: 4,500/6,000A. ● Break time under I△n: ≤0.1s. ● Rated frequency: 50/60Hz. ● Rated impulse withstand voltage (1.2/50)Uimp: 4,000A. ● Dielectric TEST voltage at ind. Freq. for 1min: 2kV. ● Insulation voltage UI: 300V. ● Pollution degree: 2.
● Electrical life: 2,000.
● Mechanical life: 2,000.
● Contact position indicator: Yes.
● Protection degree: IP20.
● Ambient temperature (with daily average≤35℃): -5℃…+40℃.
● Storage temperation: -25℃…+70℃.
● Terminal connection type: Cable/Pin-type busbar.
● Terminal size top/bottom for cable: 16mm2 18-5AWG.
● Terminal size top/bottom for busbar: 16mm2 18-5AWG.
● Tightening torque 2.0 N*m 11In-Ibs.
● Mounting: On DIN rail EN 60715 (35mm) by means of
● Fast clip device.
● Connection: From top.
| Type |
NM-2NG2R 1C DC24 |
NM-2NG2R 2C DC24 |
NM-2NG2R 4C DC24 |
| Specification |
24VDC/AC-1C |
2x24VDC/AC-1C |
4x24VDC/AC-1C |
| Size(L x W x H) |
90x18x200mm |
90x34x200mm |
90x66x200mm |
| Technical data |
/ |
/ |
/ |
| Input signal |
/ |
/ |
/ |
| Rated voltage |
24VDC/AC |
24VDC/AC |
24VDC/AC |
| Max voltage |
110% rated value |
110% rated value |
110% rated value |
| Rated current |
21.8mA |
21.8mA |
21.8mA |
| Operating voltage |
80% rated voltage |
80% rated voltage |
80% rated voltage |
| Resetting voltage |
10% rated voltage |
10% rated voltage |
10% rated voltage |
| Consumption power |
≈0.36W |
≈0.36W |
≈0.36W |
| Output contact |
1 group |
2 group |
4 group |
| Contact type |
1-pole transfer for single contact |
1-pole transfer for each single contact |
1-pole transfer for each single contact |
| Contact load |
8A250VAC/5A28VDC |
8A250VAC/5A28VDC |
8A250VAC/5A28VDC |
| Max transfer voltage |
380VAC/125VDC |
380VAC/125VDC |
380VAC/125VDC |
| Max transfer power |
2200VAC/200W |
2200VAC/200W |
2200VAC/200W |
| Max operating frequency |
1800 times/h |
1800 times/h |
1800 times/h |
| Mechanical life |
2×10,000,000 operations |
2×10,000,000 operations |
2×10,000,000 operations |
| Electrical life |
1×100,000 operations |
1×100,000 operations |
1×100,000 operations |
| Net weight |
50g |
90g |
165g |
| Wiring diagramNote |
Input voltage can be customized, see instruction for details; an example of 24V. |
| |
![Custom Waterproof Light Switch Company 4]() |
![Custom Waterproof Light Switch Company 5]() |
![Custom Waterproof Light Switch Company 6]() |
● Model: NHA-8.
● Waterproof grade: IP65.
● Rated Voltage/Rated Cuttent: 690V/50/60Hz.
● Material: Cover-PC.
● Color: Ral7035.
● Tested and approved to EN60947-1.
● Certified: CE.
● Din rail connection according to EN50022.
● Supplied with removable earth/neutral bar.
● Dimensions: 215* 210* 100.
Mainly suitable for indoor and outdoor electrical, communication, fire fighting equipment, iron and steel smelting, petrochemical industry, electronics, electricity, railways, construction sites, mines, mining sites, airports, hotels, ships, large factories, coastal factories, unloading terminal equipment , Sewage treatment facilities, environmental pollution facilities, etc.
Effective protection of circuit equipment such as circuit breakers, air switches, etc., to prevent damage to electrical appliances by rain and moisture.
Can be equipped with belt joint module series accessories and basic series; Framework can be installed in front of the fastening screw on the base of enough cable wiring space, make the installation Powder compact and reliable, convenient maintenance, ensure the protection grade is IP55 are closed.
● Protection Degree: IP55.
● Material: ABS/Flame retardant PC.
● Low Temperature: -20℃ to 55℃.
● Rated Voltage: 110V-250V.
● Rated Current: 13A-16A.
● Colour: Grey RAL 7035.
● Reference Standard: IEC60670.
● Recognition Certificate: CE, VDE, CCC.
● VV for common input terminal, A, B for the control terminal;
● When: VV input 24VDC positive, A and B for 24VDC negative;
● When: VV input 24VDC negative, A and B for 24 VDC positive;
● 24VAC input same as 24VDC;
● Input A and B control relays A and B respectively;
● Input method of 4 groups, 8 groups, 16 groups are all the same, please refer to this.
3-Phase Supply Control Relays Dimensions and Mounting
1
What is the NKC1-63DC 6KA MCB Mini Circuit Breaker?
The NKC1-63DC 6KA MCB Mini Circuit Breaker is a type of circuit breaker specifically designed to protect electrical circuits from overcurrent, short circuit, and electrical faults.
2
What is the maximum current rating of the NKC1-63DC 6KA MCB Mini Circuit Breaker?
The NKC1-63DC 6KA MCB Mini Circuit Breaker has a maximum current rating of 63 amps.
3
Can the NKC1-63DC 6KA MCB Mini Circuit Breaker be used for both commercial and residential applications?
Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker is suitable for both commercial and residential applications.
4
What are the typical applications for the NKC1-63DC 6KA MCB Mini Circuit Breaker?
The NKC1-63DC 6KA MCB Mini Circuit Breaker is commonly used in distribution boards, control panels, lighting circuits, power outlets, and other electrical installations.
5
Does the NKC1-63DC 6KA MCB Mini Circuit Breaker provide any additional features or protection?
Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker offers overload protection, short circuit protection, and fault protection, ensuring safe and reliable operation of electrical circuits.
6
Is the NKC1-63DC 6KA MCB Mini Circuit Breaker compatible with DC circuits only?
Yes, the NKC1-63DC 6KA MCB Mini Circuit Breaker is specifically designed for DC (direct current) circuits and may not be suitable for AC (alternating current) applications.
Company Advantages

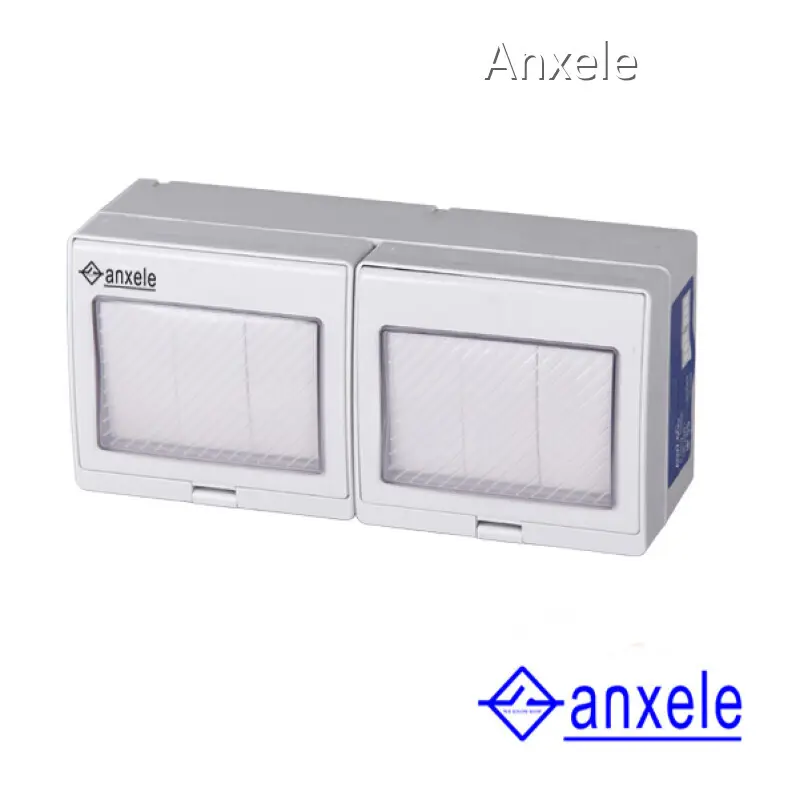

· It has been proved through industrial tests that waterproof light switch has met design requirements.
· This product is qualified with many international certificates.
· Through unremitting efforts, Shanghai Anson Electric Technology Co.,Ltd. has made great achievements in improving customer experience.
Company Features
· Shanghai Anson Electric Technology Co.,Ltd. is a widely-recognized manufacturer based in China. We focus on the design and production of waterproof light switch.
· In terms of technical capabilities, our company is powerful in the waterproof light switch industry.
· Shanghai Anson Electric Technology Co.,Ltd. constantly improves our designs to win the world market.
Application of the Product
Anxele's waterproof light switch can be used in a variety of situations.
Our company will modify and adjust the original solution according to the customer's needs. By doing so, we can provide solutions that best meet the customer's needs.
