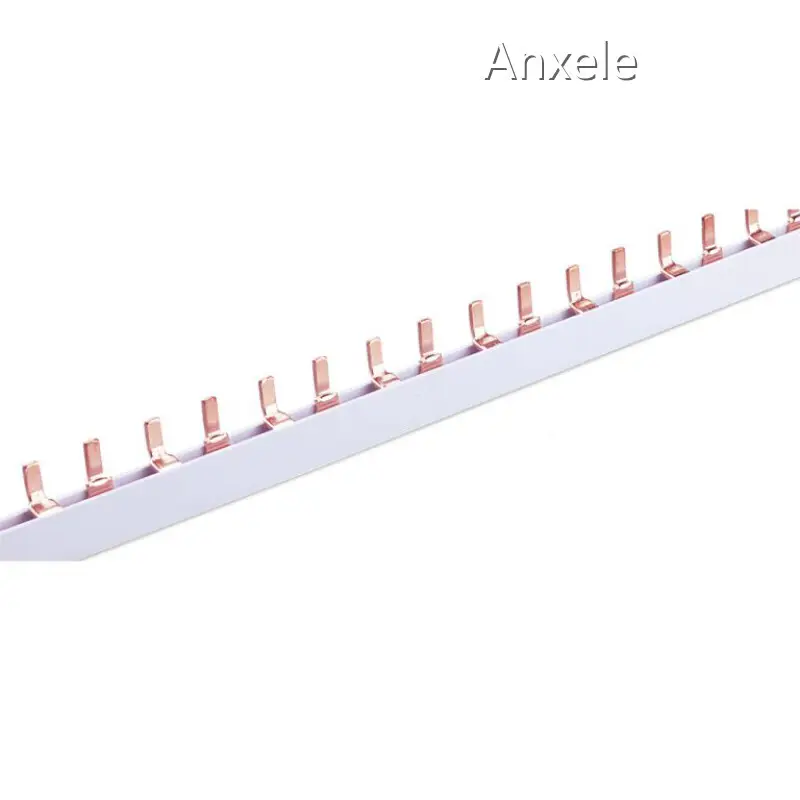

Anxele Pin Type Busbar Company

Product details of the pin type busbar

Quick Detail

The product is tested by the team of professional to ensures its durability. The mature and stable production process and quality control system ensure its quality. Shanghai Anson Electric Technology Co.,Ltd. has established an excellent enterprise sample in pin type busbar field with pain-sticking efforts.

Product Information

Compared with pin type busbar of peers, Anxele's pin type busbar has the following advantages.

Type & Specifications

Electrical Features

Mechanical Features

Installation

● Type (wave form of the earth leakage sensed): AC,A. ● Thermo-magnetic release characteristic: B,C. ● Rated current In: 6, 10, 16, 20, 25, 32, 40A. ● Poles: 1P+N. ● Rated voltage Ue: 230/240V. ● Rated sensitivity I△n: 0.01, 0.03, 0.1, 0.3A. ● Rated residual making and breaking capacity I△m:500A.

● Rated short-circuit capacity lcn: 4,500/6,000A. ● Break time under I△n: ≤0.1s. ● Rated frequency: 50/60Hz. ● Rated impulse withstand voltage (1.2/50)Uimp: 4,000A. ● Dielectric TEST voltage at ind. Freq. for 1min: 2kV. ● Insulation voltage UI: 300V. ● Pollution degree: 2.

● Electrical life: 2,000.

● Mechanical life: 2,000.

● Contact position indicator: Yes.

● Protection degree: IP20.

● Ambient temperature (with daily average≤35℃): -5℃…+40℃.

● Storage temperation: -25℃…+70℃.

● Terminal connection type: Cable/Pin-type busbar.

● Terminal size top/bottom for cable: 16mm2 18-5AWG.

● Terminal size top/bottom for busbar: 16mm2 18-5AWG.

● Tightening torque 2.0 N*m 11In-Ibs.

● Mounting: On DIN rail EN 60715 (35mm) by means of

● Fast clip device.

● Connection: From top.

Main

Complementary

Name	Date	Unit
Model	NT161P2YG	1P,2P,3P
Number of connection points	2
Number of potentials	1
Color	black, brown, grey, red, blue(N)and yellow/green(PE)
Length	43.5	mm
Width	13.6	mm
Height	37.1	mm
Pollution degree	3
Insulation material group	Ⅰ
Rated surge voltage	8	KV
Rated voltage	1000	V
Nominal current	63	A
Min. connection capacity	1.5/16	mm²/AWG
Max. connection capacity	16/0	mm²/AWG
Line directions	Side inlet
Strip length	16mm
Insulation material	PA66
Flame-retarded rating	UL94 V-0

Product Features

● Model: NHA-8.

● Waterproof grade: IP65.

● Rated Voltage/Rated Cuttent: 690V/50/60Hz.

● Material: Cover-PC.

● Color: Ral7035.

● Tested and approved to EN60947-1.

● Certified: CE.

● Din rail connection according to EN50022.

● Supplied with removable earth/neutral bar.

● Dimensions: 215* 210* 100.

Application

Mainly suitable for indoor and outdoor electrical, communication, fire fighting equipment, iron and steel smelting, petrochemical industry, electronics, electricity, railways, construction sites, mines, mining sites, airports, hotels, ships, large factories, coastal factories, unloading terminal equipment , Sewage treatment facilities, environmental pollution facilities, etc.

Effective protection of circuit equipment such as circuit breakers, air switches, etc., to prevent damage to electrical appliances by rain and moisture.

Product Introduction

It also provides fork/pin options to meet the interface requirements of different devices. The fire-retardant shell material can withstand abnormally high temperatures and avoid the risk of overheating caused by short circuits, in compliance with IEC/EN 60947-7-1 standards.

It is suitable for distribution boxes, industrial control cabinets, and building electrical systems to ensure stable and safe power distribution. It is an ideal solution for improving the efficiency and reliability of modular equipment connections.

Details

● VV for common input terminal, A, B for the control terminal;

● When: VV input 24VDC positive, A and B for 24VDC negative;

● When: VV input 24VDC negative, A and B for 24 VDC positive;

● 24VAC input same as 24VDC;

● Input A and B control relays A and B respectively;

● Input method of 4 groups, 8 groups, 16 groups are all the same, please refer to this.

Product Display

carousel-2

Read More

carousel-5

Read More

carousel-7

Read More

Dimensional Drawing

3-Phase Supply Control Relays Dimensions and Mounting

AS-1117-1

Company Information

Shanghai Anson Electric Technology Co.,Ltd. is an integrated company in We are mainly engaged in the production, processing and sales of Anxele always abides by the principle of 'building a modern brand, developing constantly by innovation'. Based on the establishment of a long-term management mechanism, the production in industry would be developed continuously. Our company has a solid team of professional skills with modern awareness and superb skills to provide customers with strong technical support. Anxele insists on providing customers with one-stop and complete solution from the customer's perspective.
We are responsible for the production of high-quality products, please contact us to order if in need.
