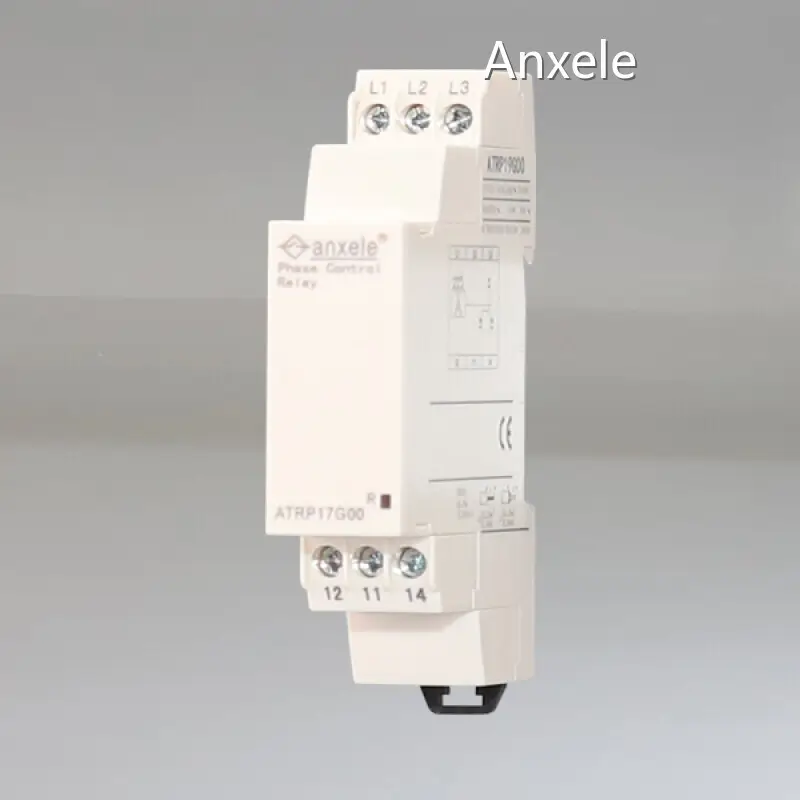

Ideal for motor control, grid protection, and machinery safety, the ATRP17G00 variant delivers critical fault detection and rapid response, certified for compliance with industrial standards to safeguard operations against phase-related disruptions.
Technical parameter
| Complementary | Mounting Support | 35 mm symmetrical DIN rail conforming to EN/EC 60715 | |
| Maximum Switching Voltage | 250V DC/250 VAC | Electrical Durability | 100000 cycles |
| Minimum Switching Current | 10 mA at5 VDC | Mechanical Durability | ≤30000000 cycles |
| [US] Rated Supply Voltage | 208...480 V AC 3 phases | Operating Rate | ≤360 operations/hour under fullload |
| Supply Voltage Limits | 183..528 VAC | Utilisation Category | DC-13 conforming to lEC 60947-5-1 |
| Control Circuit Voltage Limits | -12 %,+10% Un | DC-12 conforming to lEC 60947-5-1 | |
| Power Consumption In Va | <= 22 VA 400 V AC 50 Hz | AC-15 conforming toIEC 60947-5-1 | |
| Voltage Detection Threshold | <100 V for phase failure AC | AC-14 conforming tolEC 60947-5-1 | |
| Control Circuit Frequency | 50...60 Hz+/-10 % | AC-13 conforming to lEC 60947-5-1 | |
| Output Contacts | 1 C/O | AC-12 conforming to IEC 60947-5-1 | |
| Nominal Output Current | 5 A | width | 17.5 mm |
| Delay At Power Up | <= 650 ms | Product Weight | 0.13 kg |
| Voltage Range | 183...528 V | Environment | |
| Response Time | <= 130 ms in the event ofa fault | Electromagnetic Compatibility | Immunity for industrial environments conforming to EN/EC 61000-6-2 |
| Marking | CE:73/23/EEC CE:EMC 89/336/EEC | Emission standard for residential, commercial and light-industrial environmentsconforming to EN/EC 61000-6-3 | |
| Overvoltage Category | Ⅲ conforming to IEC 60664-1 | Emission standard for industrial environments conforming to EN/EC 61000-6-4 | |
| Insulation Resistance | >500 MOhm at 500V DC conforming to IEC 60664-1 | Standards | EN/IEC 60255-1 |
| >500 MOhm at 500V DC conforming to IEC 60255-5 | Ambient Air Temperature For Storage | -40...70°C | |
| [UI] Rated Insulation Voltage | 400 Vconforming tolEC 60664-1 | Ambient Air Temperature For Operation | -20...50°C |
| Supply Frequency | 50/60 Hz+/- 10 % | Relative Humidity | 95 % at 55 °C conformingto IEC 60068-2-30 |
| Operating Position | Any position without | Vibration Resistance | 1 gn(f=57.6...150 Hz)conforming toIEC 60068-2-6/IEC 60255-21-1 |
| Connections Terminals | Screw terminals 2 x0.2...2 x 1.5 mm*-AWG 24...AWG 16, fexible cable with ca-ble end | 0.35 mm (f=5...57.6 Hz)conforming to IEC 60068-2-6/IEC 60255-21-1 | |
| Screw terminals l x 0.2...1 x 2.5 mm?-AWG 24...AWG 12, flexible cable with ca-ble end | Shock Resistance | 15 gn for 1l ms conforming to IEC 60255-21-1 | |
| Screw terminals 2 x 0.5...2 x2.5 mm?-AWG 20...AWG 14, solid cable withoutcable end | IP Degree OfProtection | IP30(casing)conforming to lEC 60529 | |
| Screw terminals l x 0.5...1 x 4 mm?-AWG 20...AWG 1l, solid cable without ca-ble end | IP20(terminals)conforming to lEC 60529 | ||
| Tightening Torque | 0.6...1 N.m conforming to IEC 60947-1 | Pollution Degree | 3 conforming to lEC 60664-1 |
| Housing Material | Self-extinguishing plastic | Dielectric Test Voltage | 2 KV 1 min AC 50 Hz |
| Status Led | 1 LED yellow for relay | Non-dissipating Shock Wave | 4 KV |
Function
● Product or component type: Modular measurement and control relaysRelay type: Control relay● Product specific appli – caption: ATRP17G00● Relay monitored parameters: Phase failure detection phase sequence● Switching capacity in va: 1250 VA
Specification drawing
3-Phase Supply Control Relays Dimensions and Mounting
