16 Amp Socket by Anxele
Product details of the 16 amp socket
Product Introduction
By keeping track with the market development, anxele 16 amp socket is given many kinds of designs that are popular in the market. This product must undergo an internal quality assurance program by our quality inspectors to ensure defect-free quality. The product is highly recommended all over the world for its promising application potential.
Product Introduction

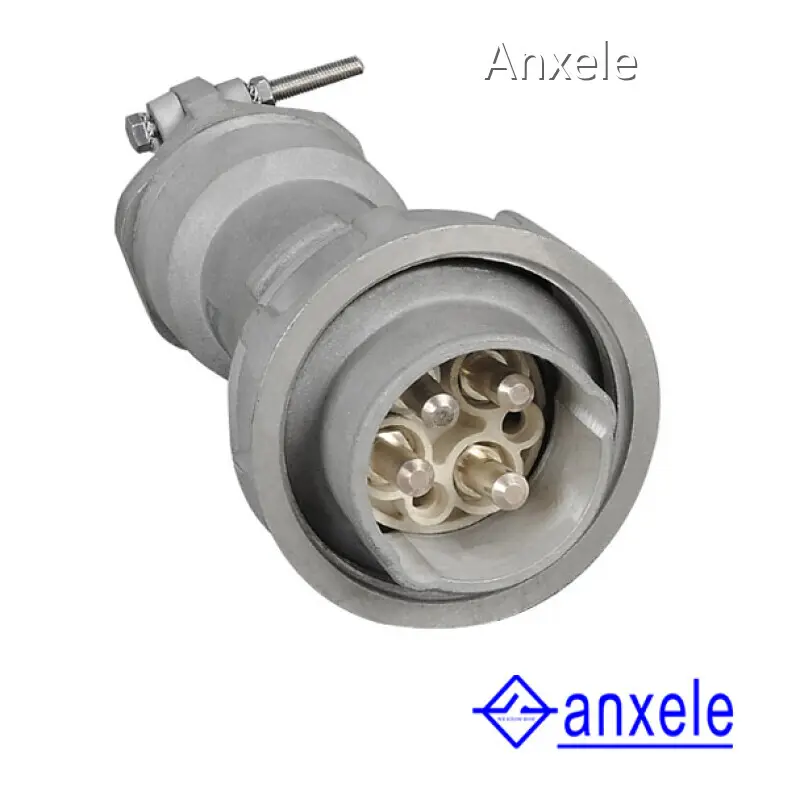

The AS-03 is a robust industrial power plug designed for low-voltage, high-current applications in extreme environments. Featuring IP67 protection and a 3P+E 250A 690V configuration, it reliably operates in ambient temperatures up to 80°C (250°C on request).
Its rugged construction resists dust, water, vibrations, and corrosion, making it ideal for offshore platforms, railway systems, ports, and bulk material handling.
Type & Specifications
| AS-03 3P+E Plug Connector, Straight thread type | |||||
| Model | Core number | maximum current | cable section | Connector: male needle | Connector: female needle |
| 3 | 4 | 250 | 70 | ASAP03-0402-S0700S | ASBS03-0402-S0700S |
| 4 | 250 | 90 | ASAP03-0402-S0900S | ASBS03-0402-S0900S | |
| 4 | 5 | 250 | 70 | ASAP04-0502-S0700S | ASBS04-0502-S0700S |
| 5 | 250 | 90 | ASAP04-0502-S0900S | ASBS04-0502-S0900S | |
Product Features
Casings and fastenings
● The body shells are tempered cast aluminum (AS7G).
● Neoprene seals ensure protection to IP66.
● All fastenings are instainlesssteel.
Insulators
● The single-piece insulators are of thermo-hardening molded plastic material.
● Insulators for male and female contacts are interchangeable in the plugand socket body shells.
Contacts
● Silver plated copper alloy full effective up to 200°C(392°).
● The cable terminals are of compression type and detachable.
● Auxiliary contacts.
● Two pilot contacts as standard.
Earthing
● The earth contact is secured directly to the body shell and earth continuity is guaranteed by means of a GITTER contact, an example of which is shown below.
Cable termination
● Can be crimped or soldered.
● Female contaqcts are fitted with PROCONECT designed internal slotted sleeve,(GITTER),which gives the following user benefits:
1.A large number of independent contact points greatly increasing the current carrying capacity of contact.
2. Low insertion and withdrawal force due to low contactfricton.
3. Long contact life due to negligible wear when contacts are mated and unmated.
4. Contacts remain fully effective over a large temperature rang and are unaffected by high temperatures up to 200°C(392°F).
Dimensions
| Earth Contact Position | 6h | |
| Rated Current(A) | 250 | |
| Poles | 4 | |
| Dimension(mm) | A | 292 |
| B | 118 | |
| C | 82 | |
| D | 75 | |
| E | 130 | |
| Cable nominal cross-sectional area(mm2) | 70~90 | |
